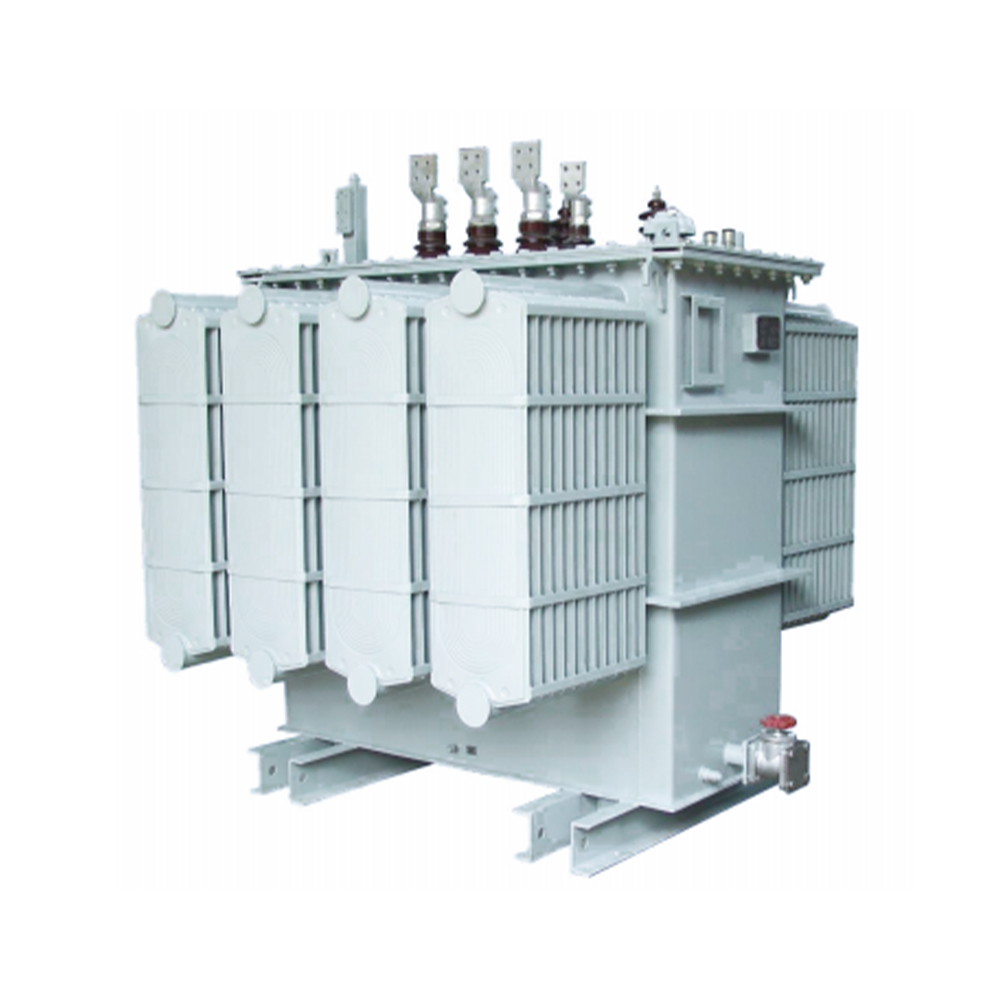

● Amorphous alloy transformer is using amorphous metal as the core material as a new type of transformer. Amorphous alloy iron core has the very high saturation magnetic induction intensity, low coercive force,  ultralow loss, low excitation current and good temperature stability. Compared with the product of silicon steel sheet series of S9 transformer, no-load loss go down 70% to 80%, no-load current go down 50%, Energy-saving effect is very obvious, Is a kind of green environmental protection and high efficiency energy saving transformer.

● Apply to power plant (station), substation (power distribution station) and industrial, business, building etc.

● Implement GB1094, GB/T25446 national standards etc.

The high voltage coil adopts continuous type or inner continuous type to improve the longitudinal capacitance distribution of the coil under impulse voltage. The coil adopts the oil-conducting circulation structure to reduce the temperature rise of the winding, and the design life of the product is 30 years. Hardness support in the coil, double dovetail pad support, upper and lower edge insulation is the pressure plate of the entire platform, high mechanical strength, strong ability to resist sudden short circuit. The coil and the insulating parts inside the coil become thicker with the circle, reducing partial discharge. Ensure that the main body is assembled as a whole, constant pressure is dried, the coil shrinks uniformly, and the screenshot is small, which effectively improves the electrical strength and short-circuit resistance of the transformer.

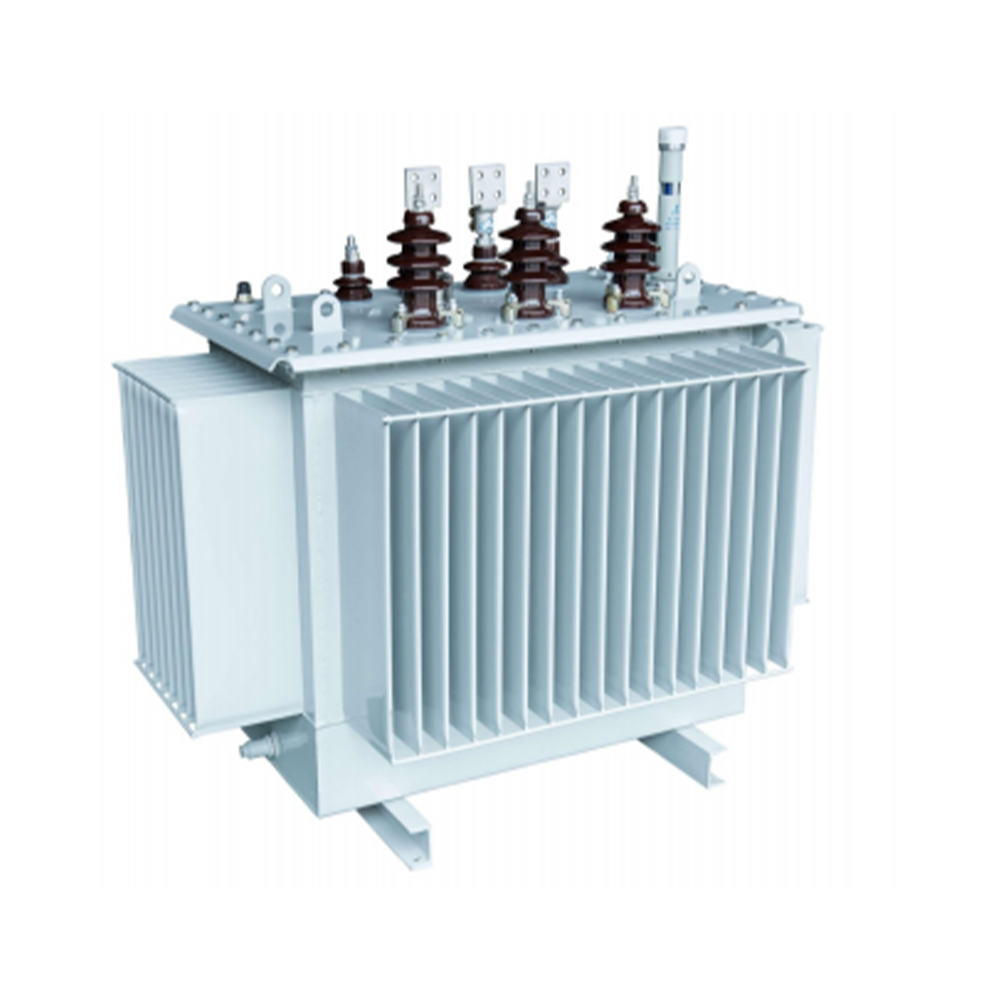

● S13-M series are energy-saving transformers, the iron cores are using high quality high permeability oriented silicon steel sheet, optimized design, making on-load loss ratio is 27％averagely lower than S11 type they are only next to a new gene ration of energy-saving products which are S(B)H15 type amorphous alloy transformers, so they have very high performance-price ratio.

● Apply to power plant(station), substation(power distribution station)and industrial, business, building etc.

● Implement GB1094, GB20052 national standards etc．

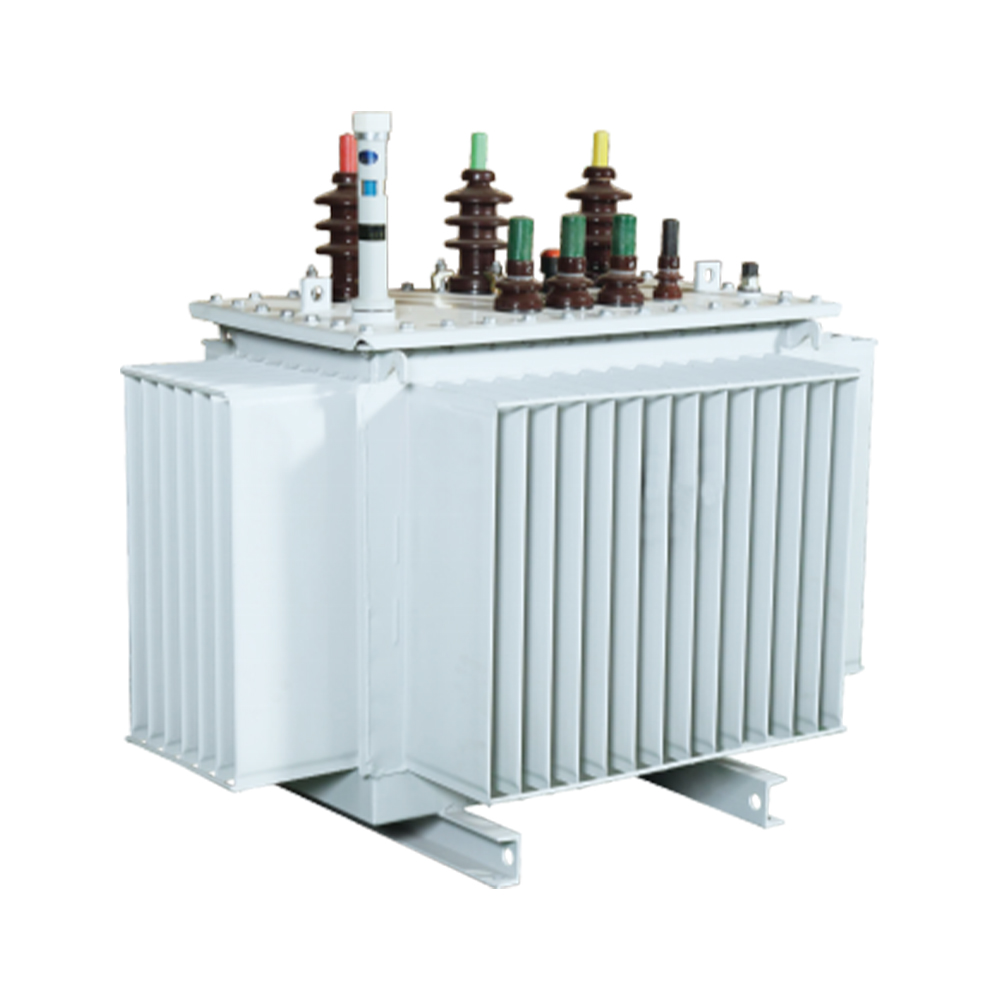

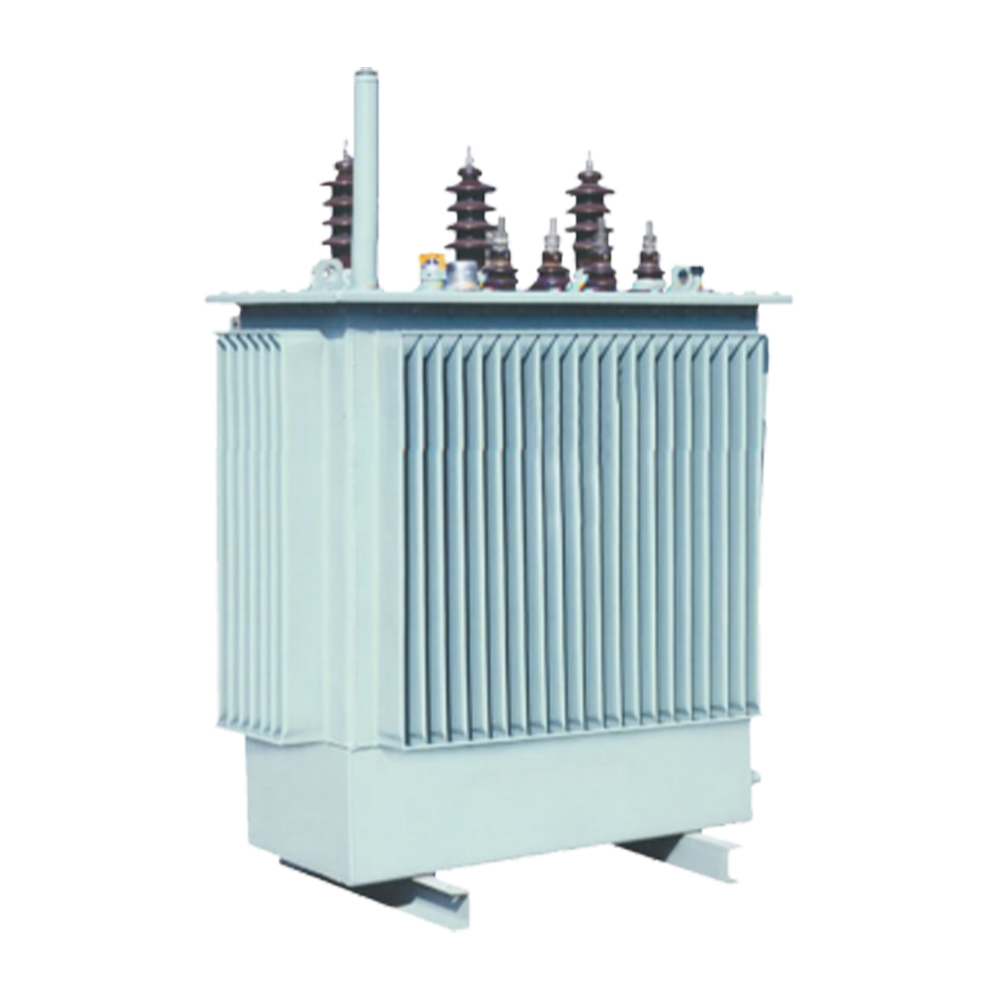

● 20kv Ievel S13-M series of three-phase double-windinq distribution transformer with off-circuit tap-changer is using the type of S11-M serial full-sealed oiI-immersed type transformer it has nol oiI conservator moisture absorber and other devices. Coil is using Iayer-to-layer structure, ampere-turns evenly distributed, the insulation structure is reasonable and has a strong short circuit impact resistance Using the ripple fuel tank, wave wings can follow with the dilatation of transformer oil while dilatation, thereby make transformer internal maintain a certain pressure, enhance the reliability of the operational．

● Apply to power plant(station), substation(power distribution station) and industrial, business, building etc.

● Implement GB1094, GB6451 national standards etc．

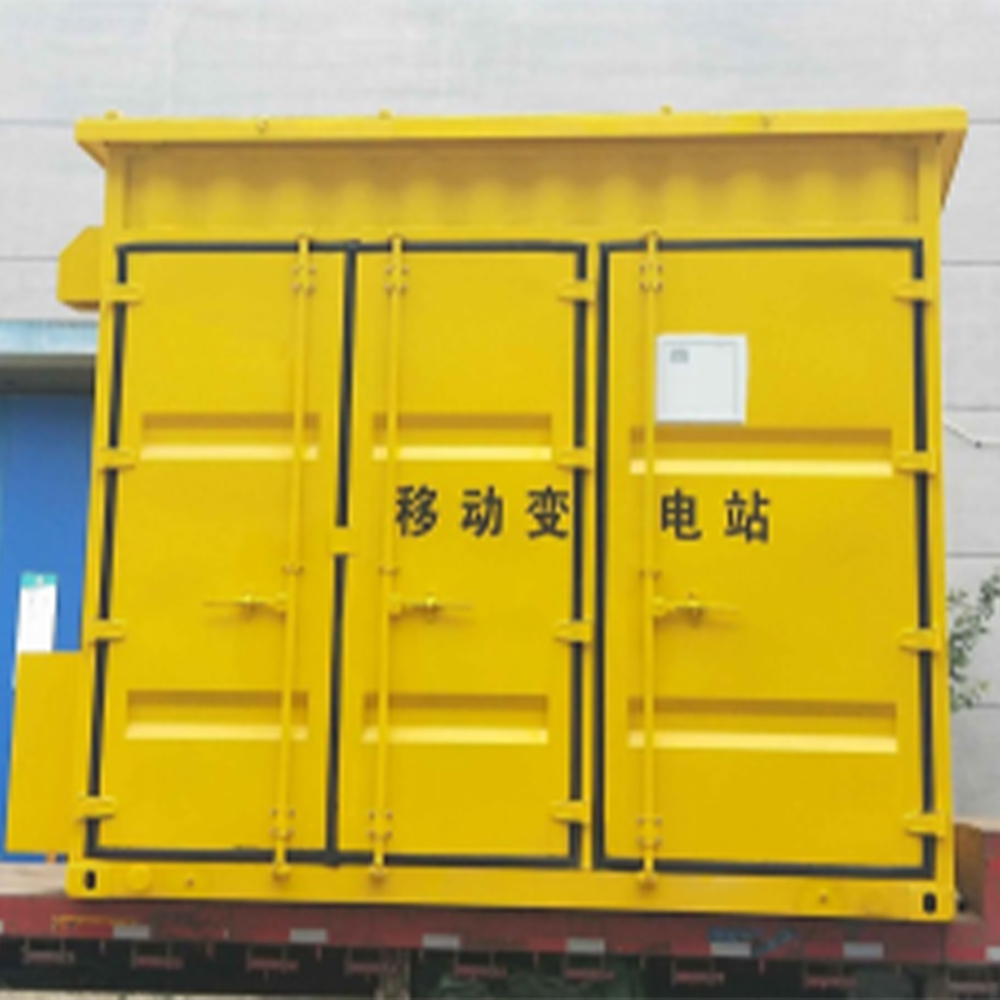

● Mobile substation is composed of prefabricated cabin, secondary equipment cabinet （ or rack）, High-voltage switchgear, cabin auxiliary facilities, etc. It is completed in the factory production, assembly, wiring, commissioning and other work, and as a whole transport to the project site, on the basis of installation. Prefabricated cabin and its internal equipment to achieve the integration of the whole set of equipment by the manufacturer, to achieve factory processing, reduce the secondary wiring site, reduce the design, construction, commissioning, workload, simplify maintenance work, shorten the construction cycle, effectively supporting the rapid construction of the power grid.

● It has the technical characteristics of standardization, modularization and prefabrication.

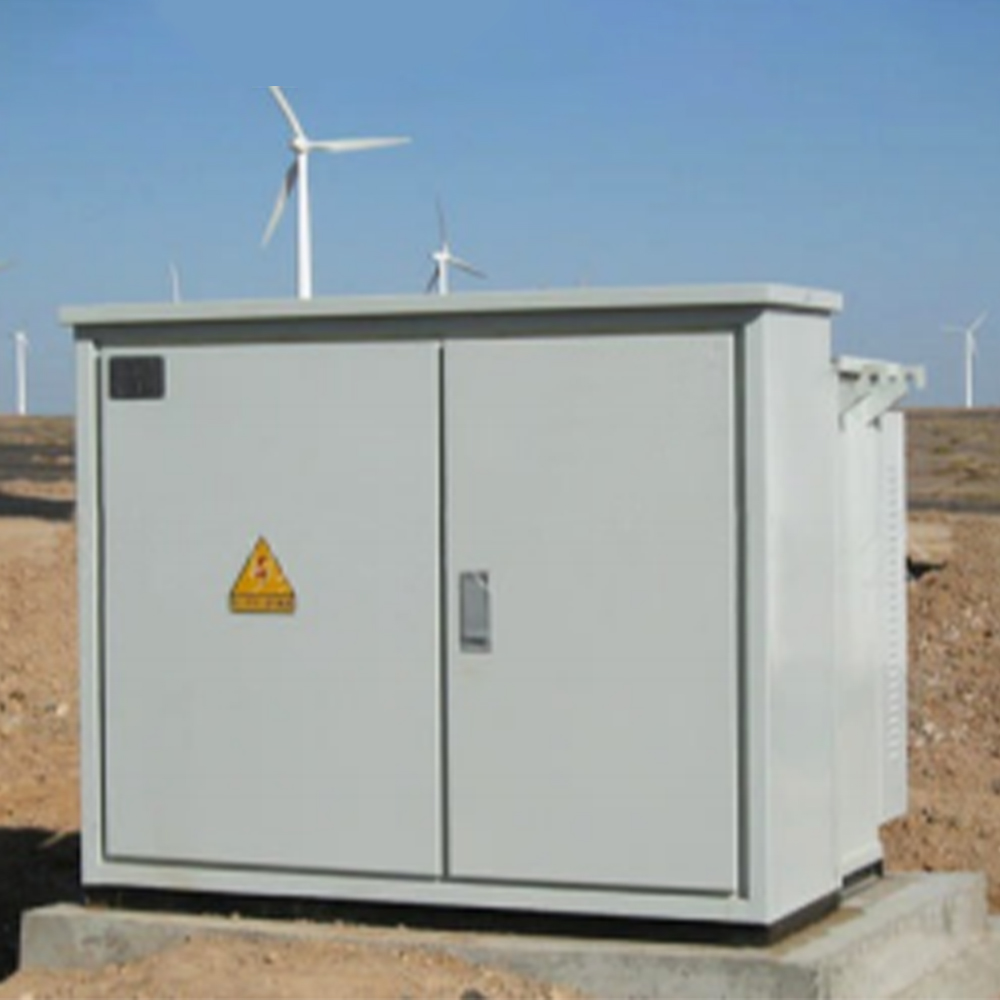

● Intelligent PV/wind power substation is a kind of power equipment which integrates high-voltage switchgear, transformer body and protective fuse in the fuel tank and integrates with low-voltage switchgear and corresponding auxiliary equipment. The product has the advantages of low loss and strong weather resistance outdoors. It is an ideal equipment for PV power generation system. Prepare.lt is suitable for industrial, commercial, construction, transportation and other fields.

● It is especially suitable for high altitude, low temperature, severe cold, coastal humid, windy sand, salt fog and so on.

● Implement GB/T17467 national standard.

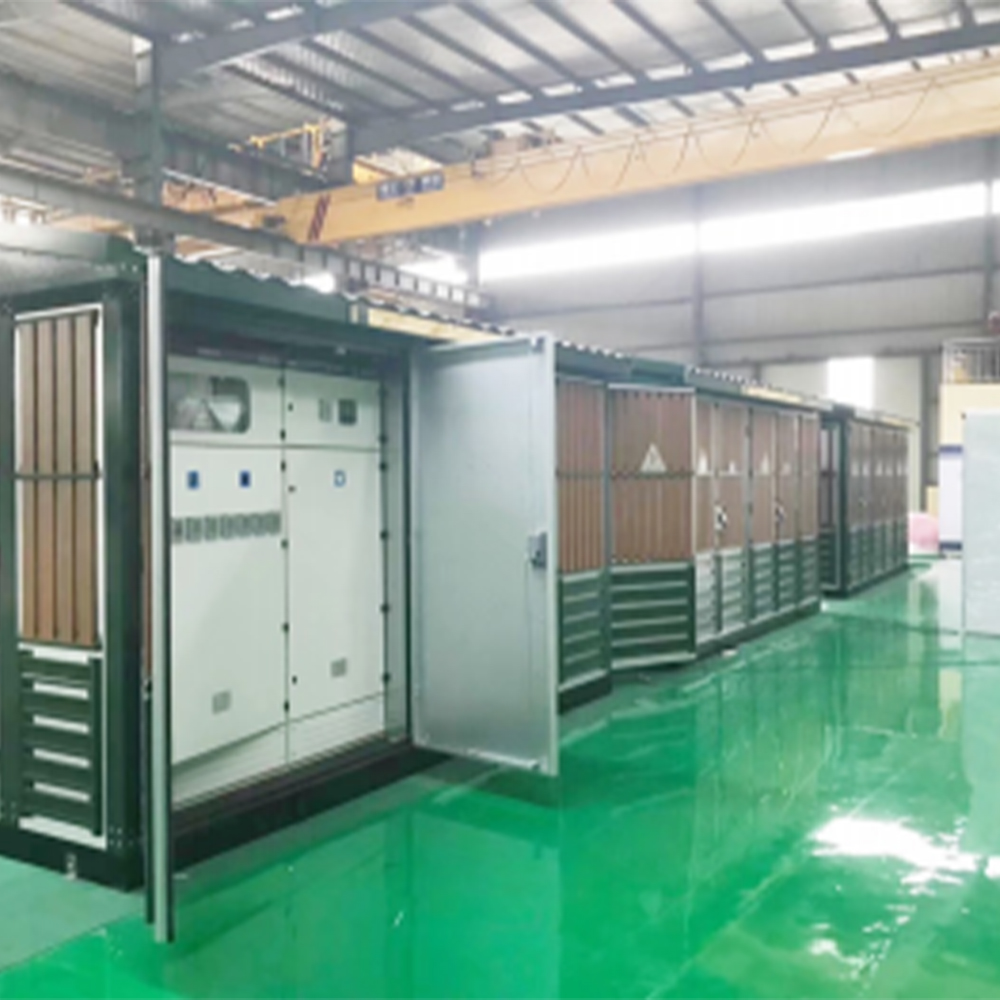

● YB series high/low voltage prefabricated transformer substation is made from high voltage electric power equipment, distribution transformer, low voltage electrical equipment, energy measurement device and power factor compensation device etc part of the integration of power equipment, as a power supply, allocation of power equipment, has convenient installation, simple operation etc trait.

● Apply to industrial, commercial, construction, transportation and other fields.

● Implement GB/T17467 national standards.

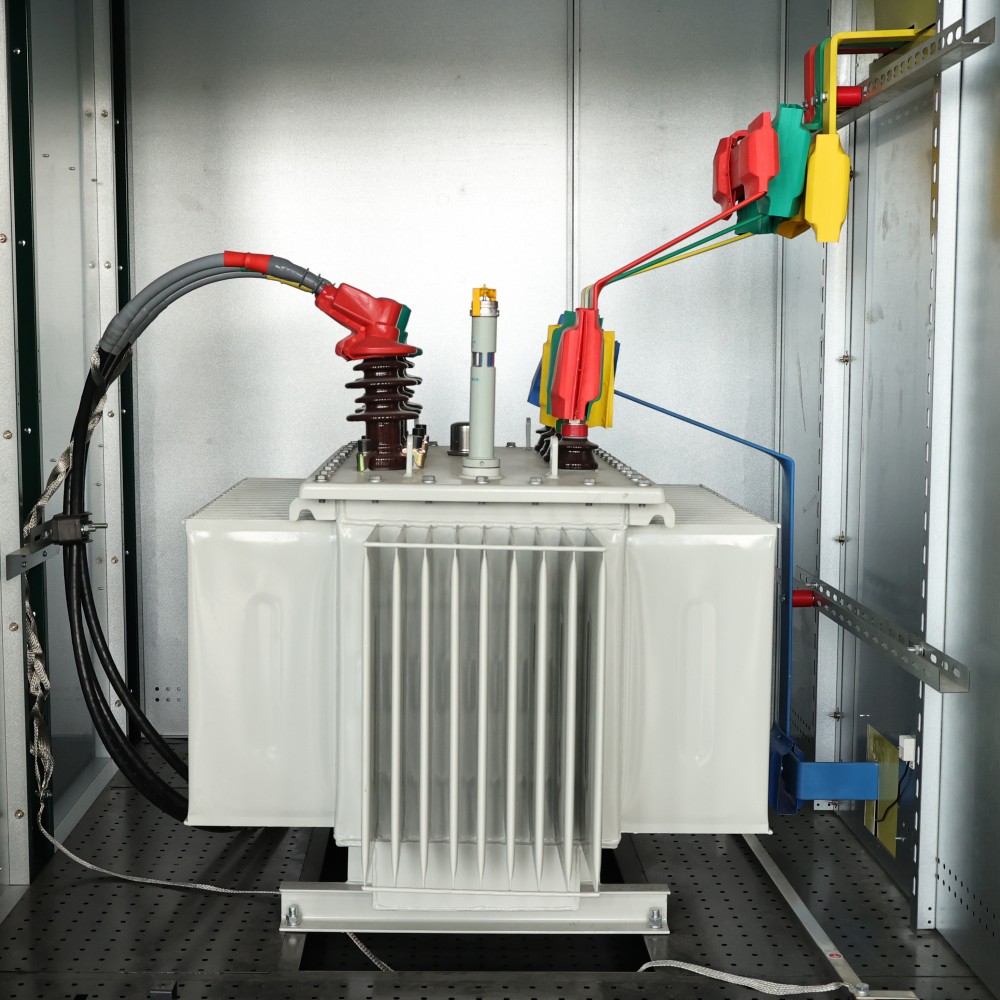

YGT produces high-quality oil-immersed transformer transformers in accordance with the IEC-60076 standard. The transformer capacity ranges from 25kVA to 3150kVA. The high-voltage side is 11kV, the low-voltage side is 33kV, and the low-voltage side is 120/240V or 230/400V. YGT having won the bid for the Ethiopian Electricity Utility , the Nepal National Electricity Authority, and the ENERGY DEVELOPMENT CORPORATION LIMITED (EDCL/ EARP) for a long time,The product has been recognized by the users.
