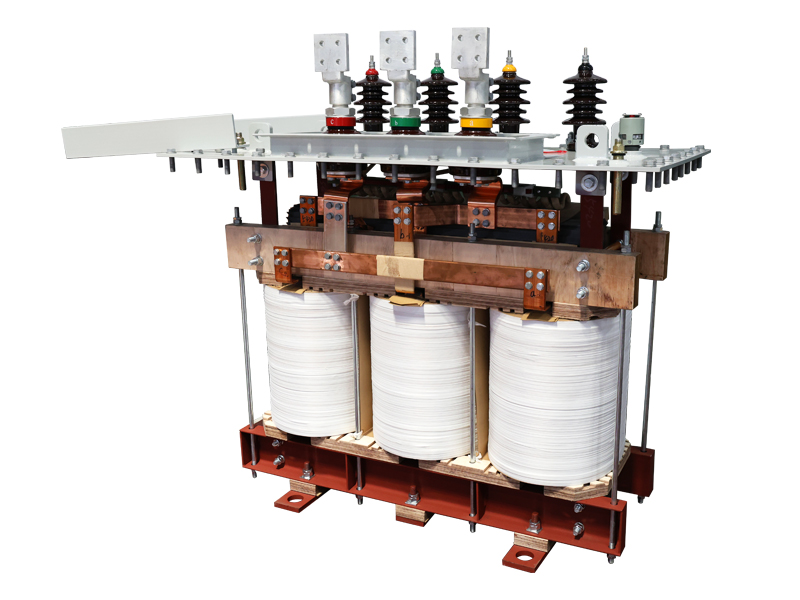

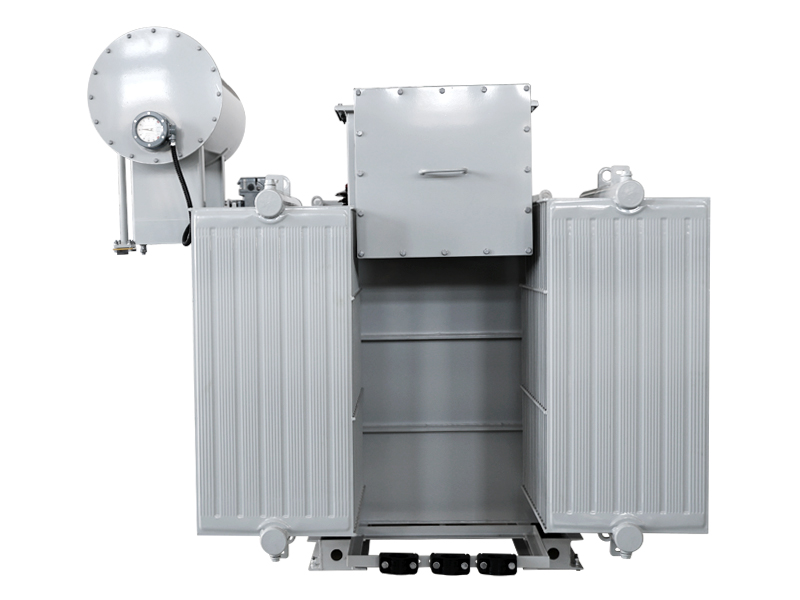

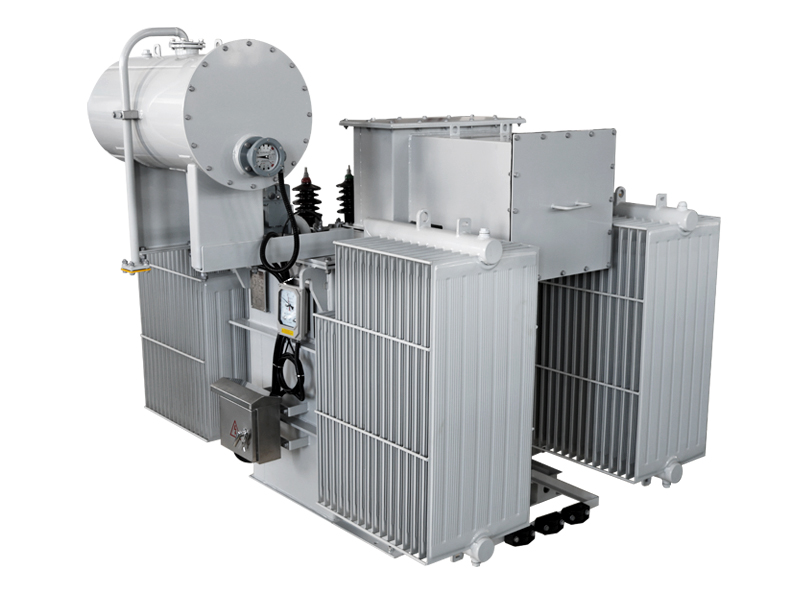

S2500/13.8 Oil-Immersed Power Transformer
Product Parameters
| Parameter | Value |
| Product Model | S-2500/13.8 |
| Rated Capacity | 2500 kVA |
| Rated Voltage | 13800 / 480 V |
| Rated Frequency | 60 Hz |
| Number of Phases | 3相 |
| Oil Type / Withstand Voltage | BD-45 / 35 kV |
| Rated Current (HV side) | 3007 A |
| Rated Current (LV side) | 104.6 A |
| Temperature Rise Limit | 绕组 65 K / 油 55 K |
| Short-Circuit Impedance | 6 % （75°C） |
| Cooling Method | ONAN |
| Insulation Level | HV: LI95 AC38 / LV: LI30 AC5 kV |
| Total Weight | 4850 kg |

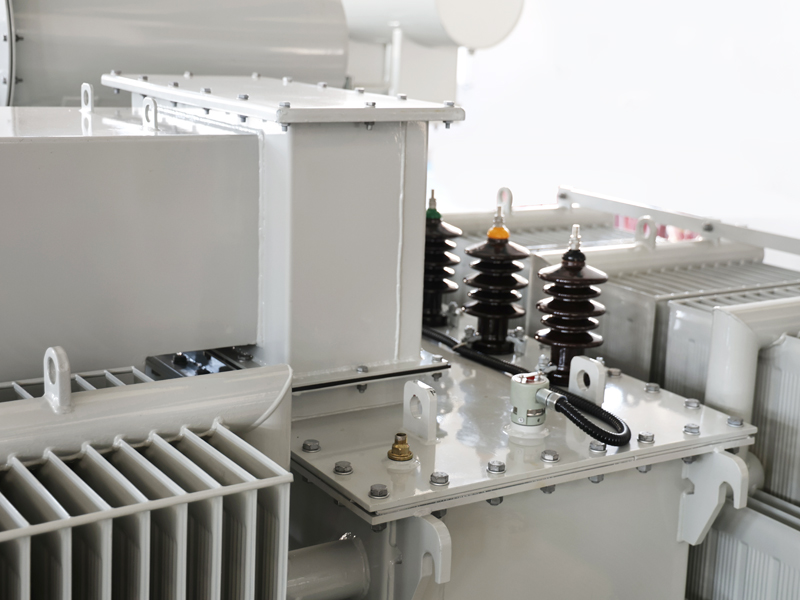

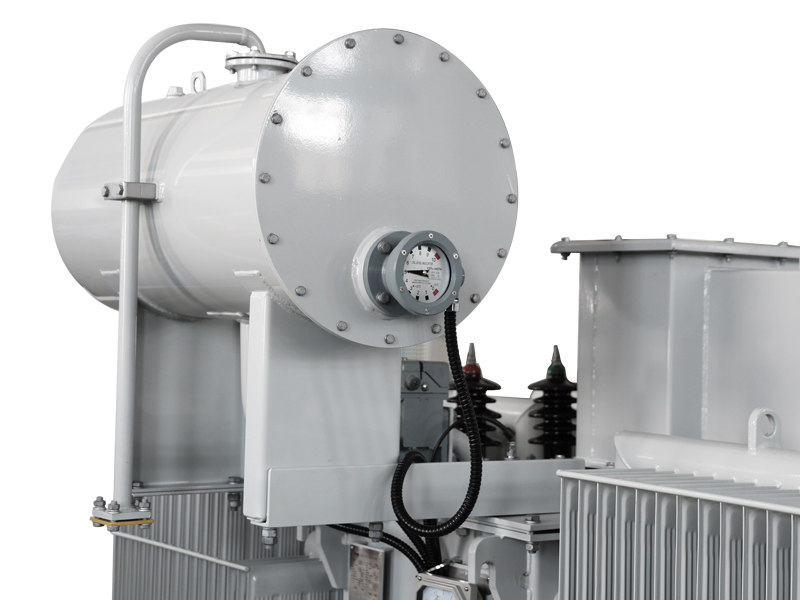

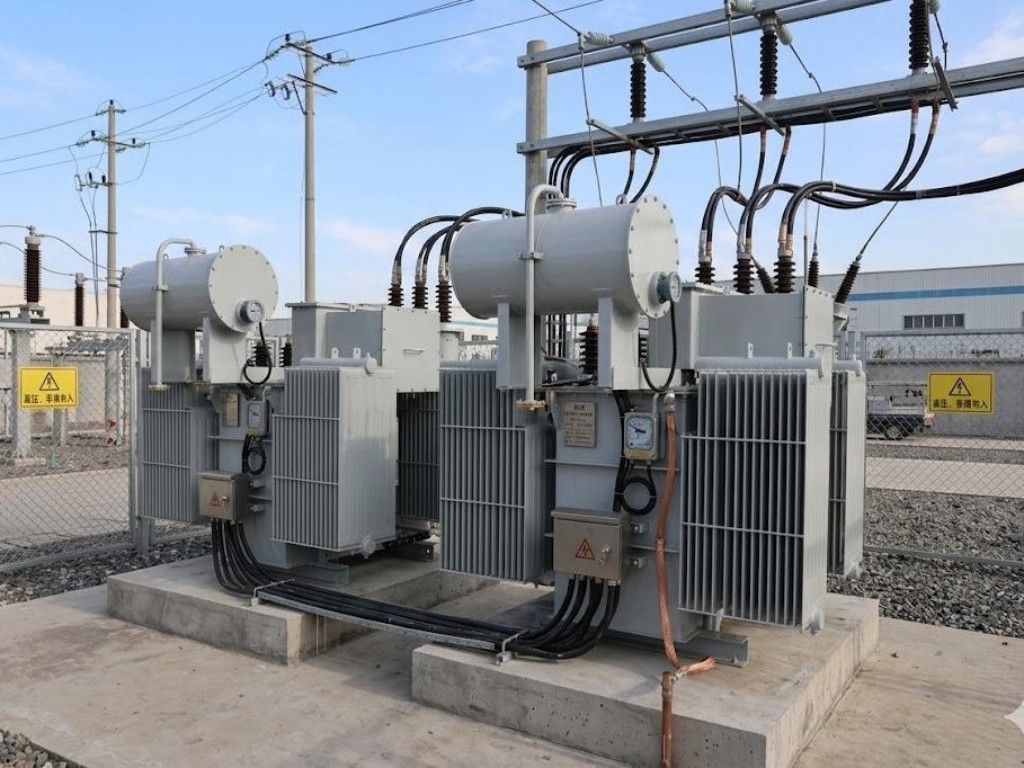

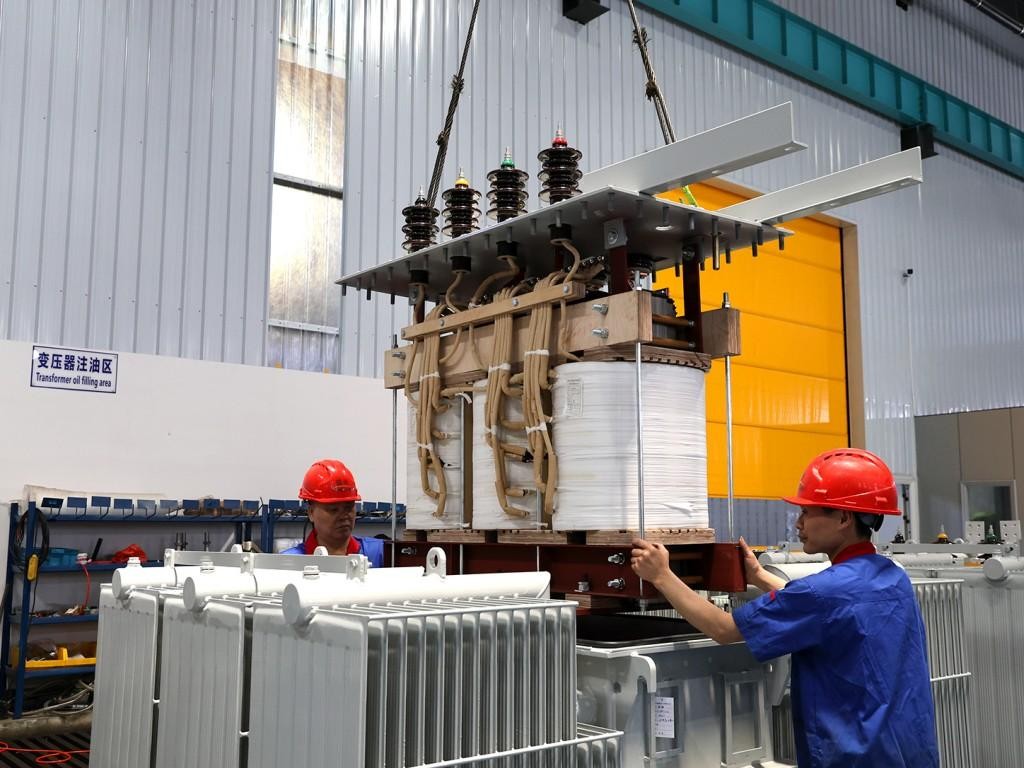

Main Advantages
- Wide voltage adjustment range to accommodate power grid fluctuation
- Large-capacity configuration for industrial-grade load demands
- Superior heat dissipation and temperature rise control performance
- High dielectric strength with ample safety margin
- Standard vector group: YNd11
- Compact layout with optimized overall weight
 |
 |
Application Scenarios

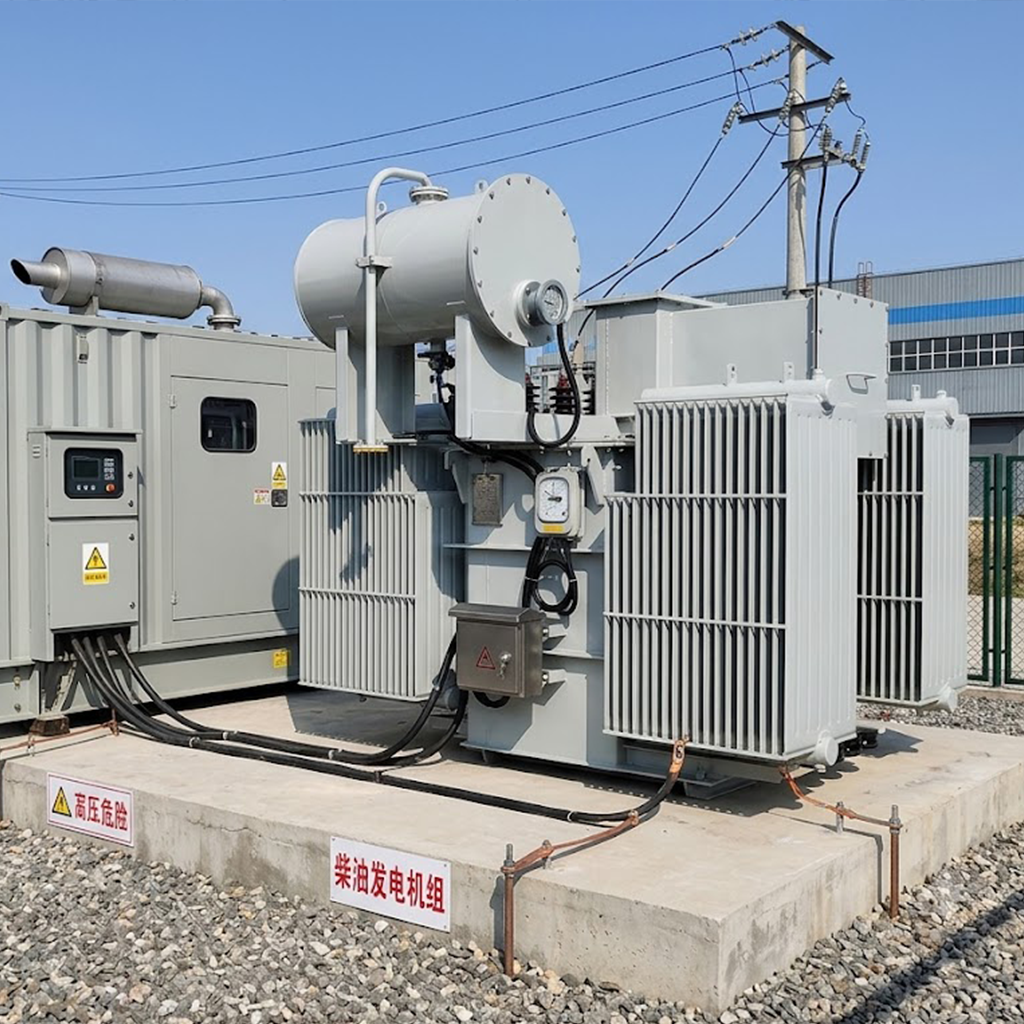

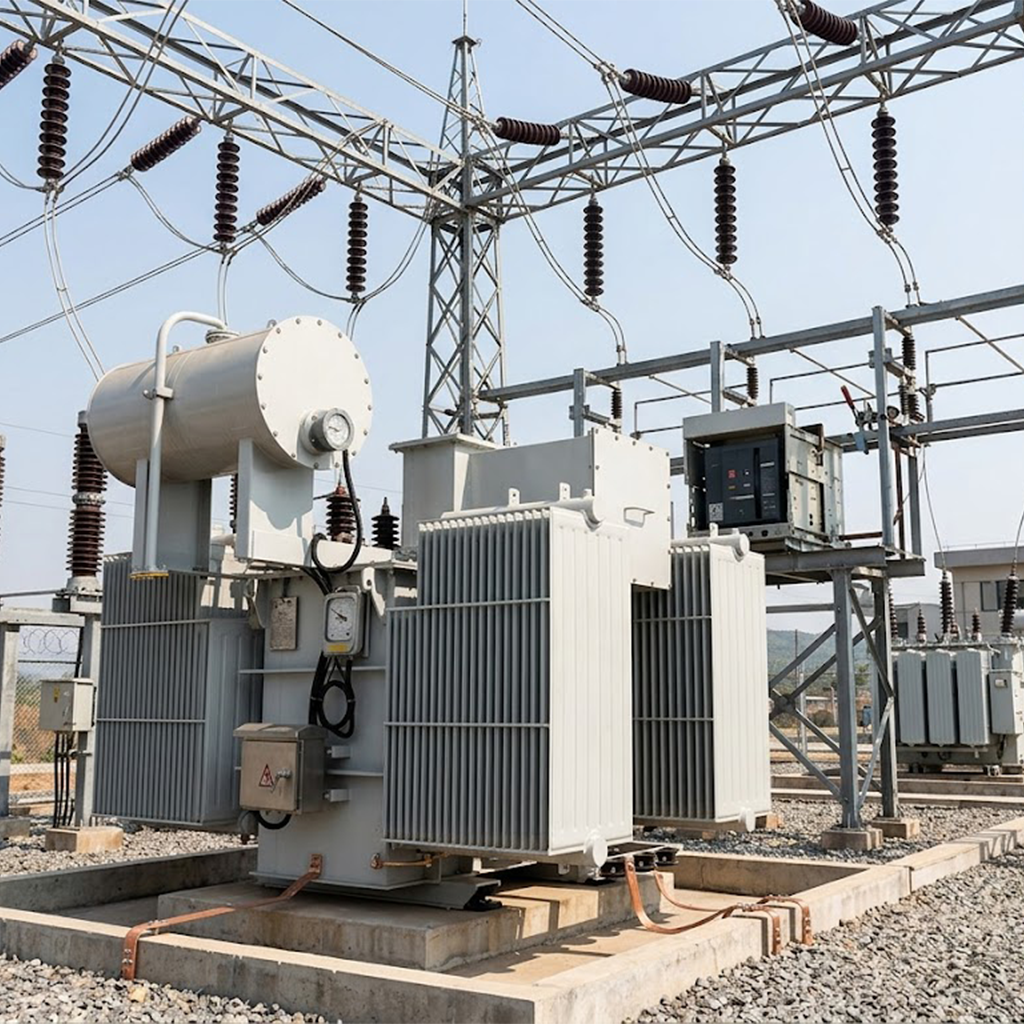

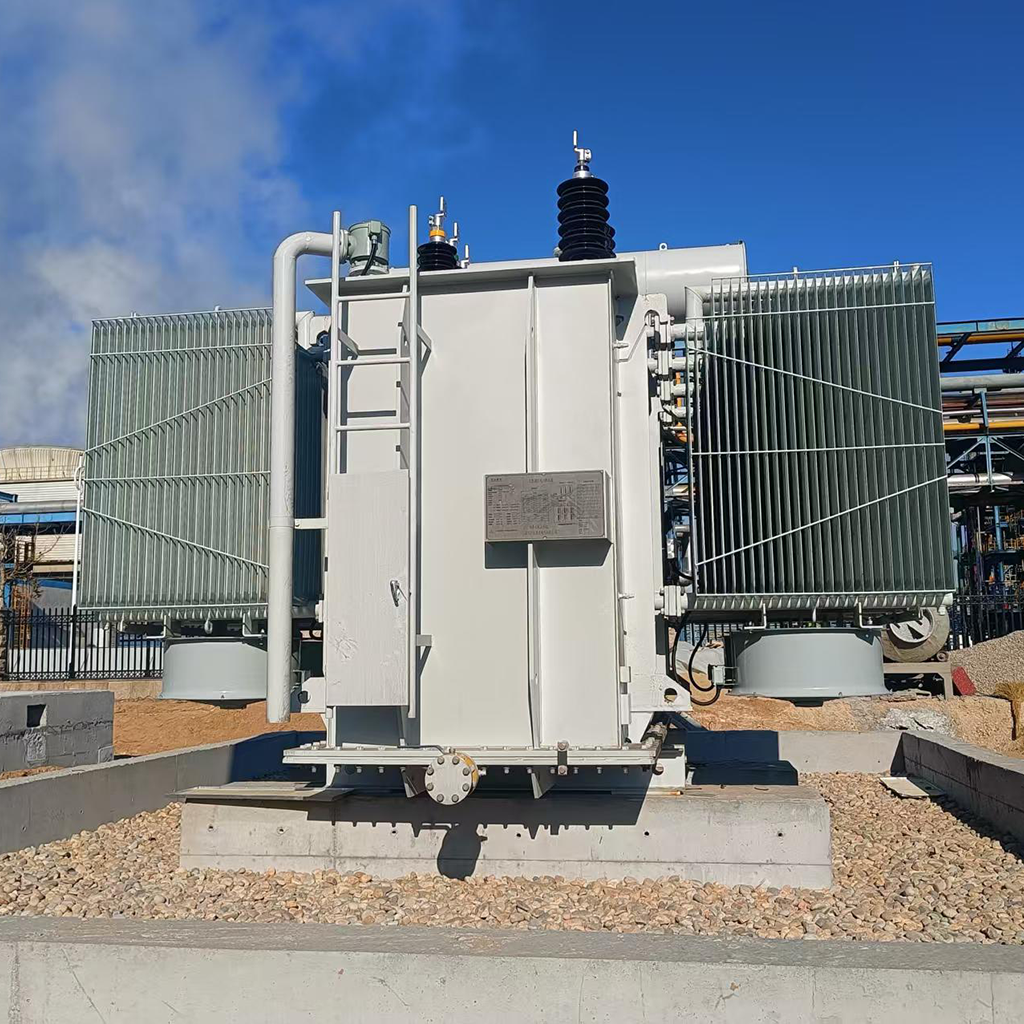

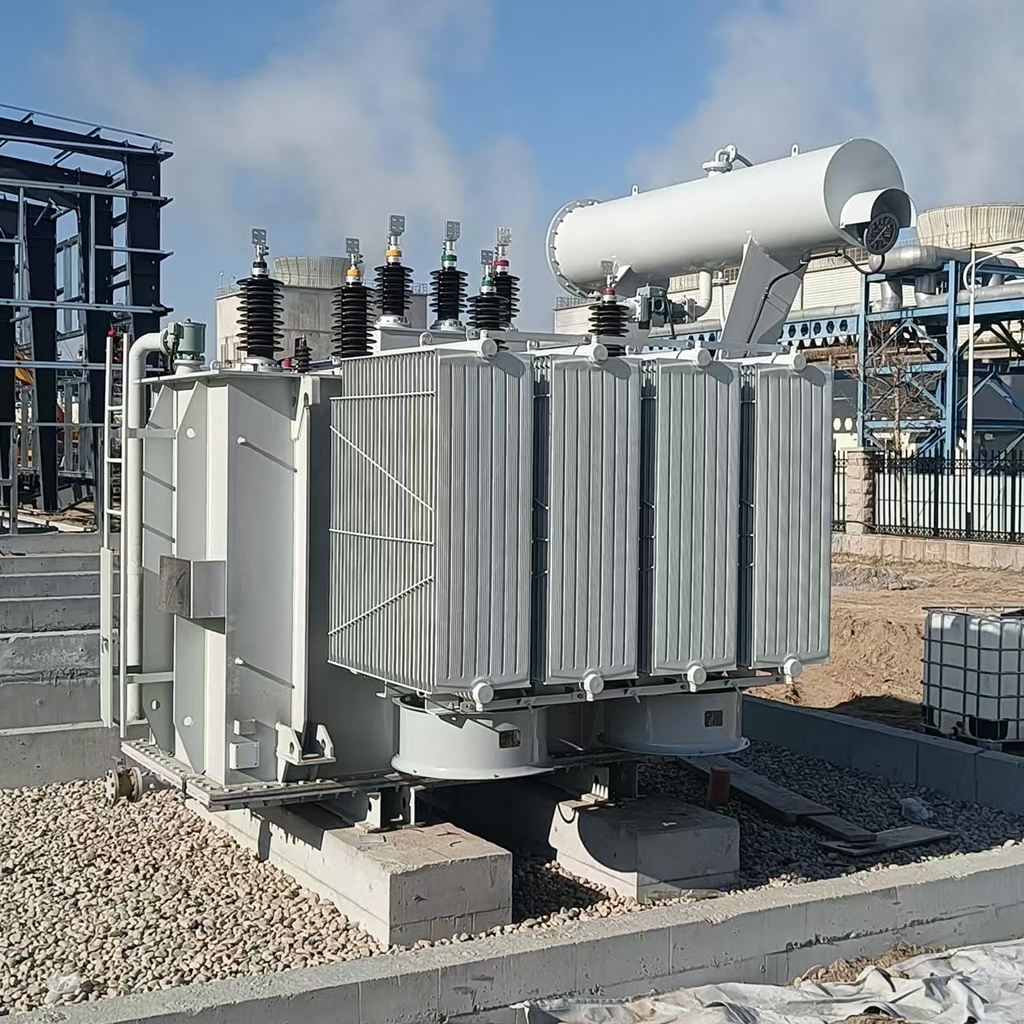

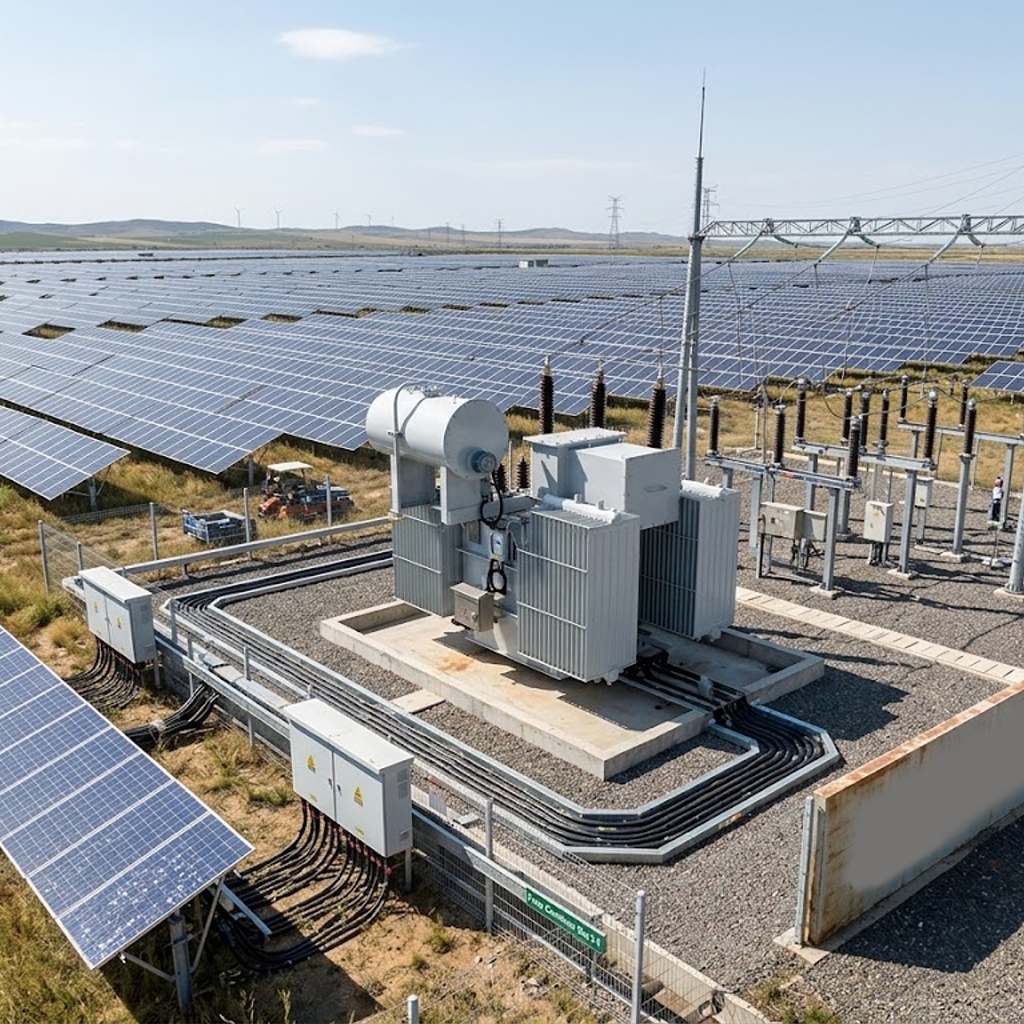

This oil-immersed transformer steps up the voltage from 480 V generators to 13.8 kV for connection to medium-voltage power grids or on-site medium-voltage distribution systems.
Customer Testimonials
Related Products
 |
 |
FAQ
1. Applicable places
--Suitable for indoor environments with high requirements for safety and noise control, such as hospitals, schools, shopping malls, etc.
2. Warranty period
--Standard warranty is 24 months, calculated from the date of shipment. Extended warranty is also available upon customer request.
3. Required installation clearance
--Refer to the outline drawing for transformer dimensions. Suitable for power stations or industrial sites with limited space. A minimum clearance of 600 mm around the unit is recommended for heat dissipation and maintenance access.
4. Altitude and temperature limitations
--Standard: –5°C to +40°C.
5. Cooling and temperature rise control
--Adopts ONAN (Oil Natural Air Natural) cooling method, no external fan required. Winding temperature rise ≤65°C, oil temperature rise ≤55°C, suitable for high-temperature environments up to 40°C. In actual operation, the secondary side temperature is controlled within 104.6°C.
6. Transport and storage
--Transport: Use enclosed vehicles to avoid rain and severe vibration. The product is fixed on a base and wrapped with protective materials before shipment.
--Storage: Keep in a well-ventilated, rain-protected area free from corrosive gases. Do not store outdoors.
1. Applicable places
--Suitable for indoor environments with high requirements for safety and noise control, such as hospitals, schools, shopping malls, etc.
2. Warranty period
--Standard warranty is 24 months, calculated from the date of shipment. Extended warranty is also available upon customer request.
3. Required installation clearance
--Refer to the outline drawing for transformer dimensions. Suitable for power stations or industrial sites with limited space. A minimum clearance of 600 mm around the unit is recommended for heat dissipation and maintenance access.
4. Altitude and temperature limitations
--Standard: –5°C to +40°C.
5. Cooling and temperature rise control
--Adopts ONAN (Oil Natural Air Natural) cooling method, no external fan required. Winding temperature rise ≤65°C, oil temperature rise ≤55°C, suitable for high-temperature environments up to 40°C. In actual operation, the secondary side temperature is controlled within 104.6°C.
6. Transport and storage
--Transport: Use enclosed vehicles to avoid rain and severe vibration. The product is fixed on a base and wrapped with protective materials before shipment.
--Storage: Keep in a well-ventilated, rain-protected area free from corrosive gases. Do not store outdoors.
